Hydraulic Seals & Pneumatic seals

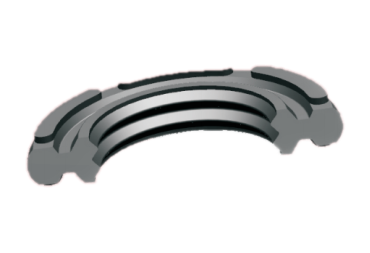

COP Hydraulic Seals And Pneumatic seals

COP Hydraulic Seals And Pneumatic seals

COP Hydraulic Seals And Pneumatic seals is suitable for various reciprocating motion cylinder piston sealing role of the seal

Materials Properties

  • Materials:NBR
  • Hardness:75+-5 shore
  • Color:Black

Technical Data



Advantages

  • Low sliding resistance
  • High durability, can withstand the pressure of both sides of the seal

Need to know more about our COP Hydraulic Seals And Pneumatic seals size specification ?

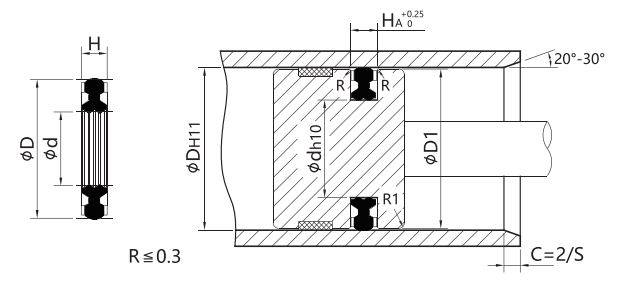

Item Size D d H HA D1
COP 10.15*5.1*1.6 10.15 5.1 1.6 1.8 9.7
COP 12.15*7.1*1.6 12.15 7.1 1.6 1.8 11.7
COP 16.15*10.8*1.6 16.15 10.8 1.6 1.8 15.7
COP 20.15*13.6*2.3 20.15 13.6 2.3 2.5 19.7
COP 25.15*16.5*2.9 25.15 16.5 2.9 3.2 24.7
COP 30*22*2.9 30 22 2.9 3.2 29.5
COP 32*24*2.9 32 24 2.9 3.2 31.5
COP 40*32*2.9 40 32 2.9 3.2 39.5
COP 50*40*3.6 50 40 3.6 4 49.5
COP 63*53*3.6 63 53 3.6 4 62.5
COP 70*60*4 70 60 4 4.4 69.4
COP 80*65*5.6 80 65 5.6 6 79.3
COP 100*85*5.6 100 85 5.6 6 99.3
COP 125*110*5.6 125 110 5.6 6 124.3
COP 140*125*5.6 140 125 5.6 6 139.3
COP 150*135*5.6 150 135 5.6 6 149.3
COP 160*145*5.6 160 145 5.6 6 159.3
COP 160*140*7.6 160 140 7.6 8 159
COP 180*160*7.6 180 160 7.6 8 179
COP 200*180*7.6 200 180 7.6 8 199
COP 250*230*7.6 250 230 7.6 8 249
