SPGW Piston Seals

SPGW Piston Seals

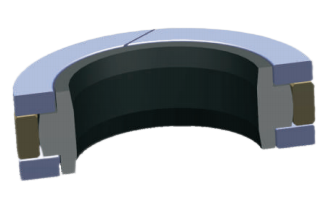

SPGW Piston Seals is a double acting piston special combination of seals which consists of an elastic sealing ring, two support rings and a sealing ring.

Materials Properties

  • Profile Seal:PTFE with Bronze
  • Back up ring:POM
  • Pressure ring:NBR

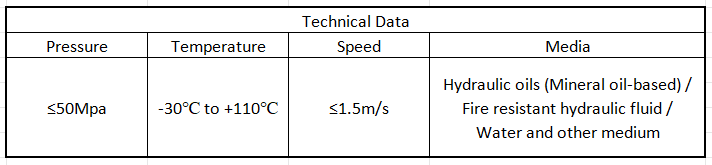

Technical Data



Advantages

  • High wear resistance
  • Long service life
  • Low friction
  • High sliding speed.
  • Excellent sealing performance even at pressure peaks

Need to know more about our SPGW Piston Seals size specification ?

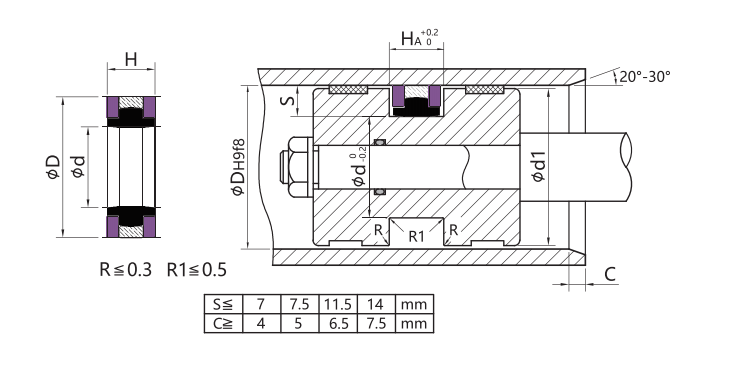

Item Size D d H HA
SPGW 50*36*8.5 50 36 8.5 9
SPGW 55*41*8.1 55 41 8.1 8.6
SPGW 60*46*8.5 60 46 8.5 9
SPGW 63*48*10.5 63 48 10.5 11
SPGW 65*50*10.5 65 50 10.5 11
SPGW 70*55*10.5 70 55 10.5 11
SPGW 75*60*10.5 75 60 10.5 11
SPGW 80*65*10.5 80 65 10.5 11
SPGW 85*70*6.5 85 70 6.5 7
SPGW 90*75*10.5 90 75 10.5 11
SPGW 95*80*10.5 95 80 10.5 11
SPGW 100*85*12 100 85 12 12.5
SPGW 105*90*12 105 90 12 12.5
SPGW 110*95*12 110 95 12 12.5
SPGW 115*100*12 115 100 12 12.5
SPGW 120*105*12 120 105 12 12.5
SPGW 125*102*15.5 125 102 15.5 16
SPGW 130*107*15.5 130 107 15.5 16
SPGW 135*112*15.5 135 112 15.5 16
SPGW 140*117*15.5 140 117 15.5 16
SPGW 145*122*15.5 145 122 15.5 16
SPGW 150*127*15.5 150 127 15.5 16
SPGW 155*132*15.5 155 132 15.5 16
SPGW 160*137*15.5 160 137 15.5 16
SPGW 165*142*15.5 165 142 15.5 16
SPGW 170*147*15.5 170 147 15.5 16
SPGW 175*152*15.5 175 152 15.5 16
SPGW 180*157*15.5 180 157 15.5 16
SPGW 185*162*15.5 185 162 15.5 16
SPGW 190*167*15.5 190 167 15.5 16
SPGW 195*172*15.5 195 172 15.5 16
SPGW 200*177*15.5 200 177 15.5 16
SPGW 205*182*15.5 205 182 15.5 16
SPGW 210*187*15.5 210 187 15.5 16
SPGW 215*192*15.5 215 192 15.5 16
SPGW 220*197*15.5 220 197 15.5 16
SPGW 225*202*15.5 225 202 15.5 16
SPGW 230*207*15.5 230 207 15.5 16
SPGW 240*217*15.5 240 217 15.5 16
SPGW 250*222*17 250 222 17 17.5
SPGW 260*232*17 260 232 17 17.5
SPGW 270*242*17 270 242 17 17.5
SPGW 280*252*17 280 252 17 17.5
SPGW 290*262*17 290 262 17 17.5
SPGW 300*272*17 300 272 17 17.5
